T Series

T Series
T Series

Features

  • Compact size and low profile: 5(H)mm×14(L)mm×9(W)mm
  • Meets FCC part 68 requirements
  • High sensitivity:140mW nominal operating power
  • SMT and DIP types available
  • Fully Sealed
Recognized Component Mark

File No.:E75887

RoHS Compliant

Contact Ratings

Contact Arrangement2C
Contact Resistance≤100mΩ (10mA 6VDC)
Contact MaterialSilver Alloy, Gold Flash
Contact Rating
(Resistive)		1A, 2A/30VDC; 0.5A/125VAC
Max. Switching Voltage250VAC/220VDC
Max. Switching Current2A
Max. Switching Power62.5VA/60W
Mechanical Life1×108 operations
Electrical LifeSee more details at “safety approval ratings”

Characteristics

Insulation Resistance1000MΩ (500VDC)
Dielectric
Strength		Between coil & contacts1000VAC 1min
Between open contacts1000VAC 1min
Between 2 pole contacts1000VAC 1min
Surge
withstand
voltage		Between coil & contacts1500VAC 1min
Between open contacts1500VAC 1min
Between 2 pole contacts2500VAC 1min
Operate time (at nomi. volt.)≤2ms
Release time (at nomi. volt.)≤1.5ms
Humidity98% RH
Operation temperature-40°C~+85°C
UL Class BInsulation System Class B
Shock
Resistance		Functional490m/s2
Destructive980m/s2
Vibration
resistance		Functional10Hz to 55Hz 3mm DA
Destructive10Hz to 55Hz 5mm DA
Unit weightApprox. 1.5g
ConstructionSealed Type

Notes:
1) The data shown above are initial values.
2) Please find coil temperature curve in the characteristic curves.

Ordering Information

TLS –12R –XXXX
ModelL:1 coil latching K:2 coil latching
Blank:Single side stable		S:SMT(Single side stable only) Blank:DIPCoil VoltageR:Tape and reel packing(Only for SMT type)Customer Code

Coil Data at 25°C

Single side stable

Nominal
Voltage
VDC		Operate
Voltage
(Max.)
VDC		Release
Voltage
(Min.)
VDC		*Max.
Allowable
Voltage
VDC		Coil
Resistance
Ω±10%
32.250.37.564.3
53.750.512.5178
64.500.615.0257
96.750.922.5579
129.001.230.01028
2418.002.448.02880

1 coil latching

Nominal
Voltage
VDC		Operate
Voltage
(Max.)
VDC		Release
Voltage
(Min.)
VDC		*Max.
Allowable
Voltage
VDC		Coil
Resistance
Ω±10%
32.252.258.790
53.753.7514.5250
64.504.5017.4360
96.756.7526.1810
129.009.0034.81440
2418.0018.0057.63840

2 coil latching

Nominal
Voltage
VDC		Operate
Voltage
(Max.)
VDC		Release
Voltage
(Min.)
VDC		*Max.
Allowable
Voltage
VDC		Coil
Resistance
Ω±10%
Set CoilReset Coil
32.252.256.04545
53.753.7510.0125125
64.504.5012.0180180
96.756.7518.0405405
129.009.0024.0720720
2418.0018.0036.019201920

Note:”*Max Allowable Voltage”: The relay coil can endure max allowable voltage for a short period time only.

Coil

Coil PowerSingle side stable:140mW(24VDC:200mW)
1 coil latching:100mW(24VDC:150mW)
2 coil latching:200mW(24VDC:300mW)

Safety Approval Ratings

UL&CUL0.5A/125VAC, 6×103OPS
1A/30VDC, 6×103OPS

NOTES:
1. All values without specified temperature are at 25°C.
2. The above lists the typical loads only. Other loads may be available upon request.

OUTLINE DIMENSIONS, WIRING DIAGRAM AND PC BOARD LAYOUT. Unit: inch(mm)

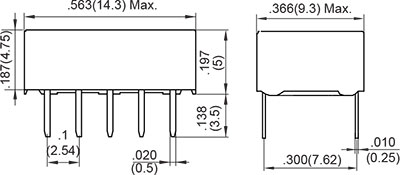

Outline Dimensions

Biserial straight pin

Biserial Straight Pin Outline Dimensions

Wiring Diagram
(Bottom view)

Single side stable

Single Side Stable Wiring Diagram

PCB Layout
(Bottom view)

Biserial Straight Pin PCB Layout

Outline Dimensions

Surface mount

Surface Mount Outline Dimensions

Wiring Diagram
(Bottom view)

1 coil latching

1 Coil Latching Wiring Diagram

2 coils latching

2 Coils Latching Wiring Diagram

PCB Layout
(Bottom view)

Surface Mount PCB Layout

* The tolerance without indicating for PCB layout is always ±0.1mm.

Unless otherwise specified tolerances are:

≤1mm＞1mm and ≤5mm＞5mm
±0.2mm±0.3mm±0.4mm

CHARACTERISTIC CURVES

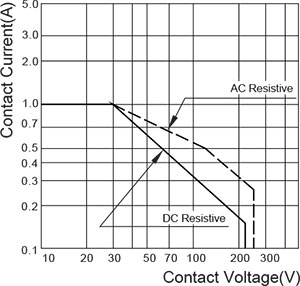

MAXIMUM SWITCHING POWER

Maximum Switching Power

LIFE CURVE

Life Curve

PACKAGING SPECIFICATION

TUBEINNER CARTONOUTER CARTONOUTER CARTON SIZE
25PCS3000PCS6000PCSL480mm*W245mm*H335mm

APPLICATION GUIDELINES

Automatic Soldering
* Flow solder is the optimum method for soldering.
* Adjust the level of solder so that it does not overflow onto the top of the PC board.
* Unless otherwise specified, solder under the following conditions depending on the type of relay.

Preheat time
20°C-100°C		Rising slope
20°C-120°C		Decreasing slope
Peak-150°C		Welding temperature
255°C-265°C
90±5 seconds＜3°C/s＜4°C/s3~5s

Hand Soldering
* Keep the tip of the soldering iron clean.

Solder lron30W or 60W
lron Tip TemperatureApprox. 350°C 662°F
Solder TimeWithin approx. 3 seconds

* Immediate air cooling is recommended to prevent deterioration of the relay and surrounding parts due to soldering heat.
* Although the sealed type relay can be cleaned, avoid immersing the relay into cold liquid
(such as washing solvent) immediately after soldering. Doing so may deteriorate the sealing performance.

Discard the dropped product
