BAS/BS/SC Series

BAS/BS/SC Series
BAS/BS/SC Series

Features

  • FCC Pt 68
  • Small Package
  • Sealed Type
  • PC Pin
  • Sensitive type and standard type are available
Recognized Component Mark

File No.:E75887

TÜV Product Certification

File No.:R 50300956

RoHS Compliant

Contact Ratings

Contact Arrangement1C
Contact Resistance≤100mΩ (1A 24VDC)
Contact MaterialAgSnO
Contact Rating
(Resistive)		BAS111, BS211, SC211BAS511
N.O.: 2A/240VAC,
2A/30VDC
N.C.: 1A/240VAC,
2A/30VDC		N.O./N.C.:
5A/120VAC
5A/30VDC
Max. Switching Voltage240VAC/30VDC120VAC/30VDC
Max. Switching Current2A5A
Max. Switching Power480VA/60W600VA/150W
Mechanical Life5×106 operations
Electrical LifeSee more details at “safety approval ratings”

Characteristics

Insulation Resistance100MΩ (at 500VDC)
Dielectric
Strength		Between coil & contacts1000VAC 1min
Between open contacts500VAC 1min
Operate time (at nomi. volt.)≤10ms
Release time (at nomi. volt.)≤5ms
Humidity35% ~ 85% RH
Operation temperature-40°C~+85°C
UL Class BInsulation System Class B
Shock
Resistance		Functional98m/s2
Destructive980m/s2
Vibration resistance10Hz ~ 55Hz 1.5mm DA
Unit weightApprox. 4g
ConstructionSealed Type, Dust Cover Type,
Flux Tight Type

Notes:
1) The data shown above are initial values.
2) Please find coil temperature curve in the characteristic curves.

Ordering Information

BAS111DC12 –GF –1 –XXXX
ModelCoil Power:111=Standard type
511=Standard type heavy load		Coil VoltageGF:Gold Flash Contacts Blank:No Gold Flash1:Dust Cover Type 2:Flux Tight Type Blank:Sealed TypeCustomer Code
BS/SC211DC12 –GF –1 –XXXX
ModelCoil Power:211=Sensitive typeCoil VoltageGF:Gold Flash Contacts Blank:No Gold Flash1:Dust Cover Type 2:Flux Tight Type Blank:Sealed TypeCustomer Code

Notes:
1. PC board assembled with dust cover type and flux tight type relays can not be washed and/or coated.
2. Dust cover type and flux tight type relays can not be used in the environment with dust, or H2S, SO2, NO2 or similar gaseous environment etc.

Coil Data at 25°C

Standard Type

Nominal
Voltage
VDC		Operate
Voltage
(Max.)
VDC		Release
Voltage
(Min.)
VDC		*Max.
Allowable
Voltage
VDC		Coil
Resistance
Ω±10%
32.10.33.320
53.50.55.556
64.20.66.680
96.30.99.9180
128.41.213.2320
2416.82.426.41280
4833.64.852.85120

Sensitive Type

Nominal
Voltage
VDC		Operate
Voltage
(Max.)
VDC		Release
Voltage
(Min.)
VDC		*Max.
Allowable
Voltage
VDC		Coil
Resistance
Ω±10%
32.10.34.845
53.50.58.0120
64.20.69.6180
96.30.914.4400
128.41.219.2700
2416.82.438.42800

Note:”*Max Allowable Voltage”: The relay coil can endure max allowable voltage for a short period time only.

Coil

Coil PowerStandard Type: 450mW
Sensitive Type: 200mW

Safety Approval Ratings

UL&CULBAS111
BS211
SC211		N.O.:2A 240VAC, 6×103 OPS
N.O.:2A 30VDC, 6×103 OPS
N.C.:2A 30VDC, 6×103 OPS
N.C.:1A 240VAC, 6×103 OPS
N.O./N.C.:2A 240VAC, 6×103 OPS
N.O./N.C.:2A 30VDC, 6×103 OPS
N.O./N.C.:1A 240VAC, 1×105 OPS
BAS511N.O./N.C.:5A 120VAC, 6×103 OPS
N.O./N.C.:5A 30VDC, 6×103 OPS
N.O.:2A 120VAC, 6×103 OPS
N.O.:2A 30VDC, 6×103 OPS
N.O./N.C.:3FLA 12VDC, 1×104 OPS
TüVBAS111
BS211		N.O.:1A 240VAC, 5×104 OPS
N.O.:2A 125VAC, 1×104 OPS
N.C.:2A 30VDC, 1×104 OPS
BAS511N.O.:5A 120VAC; N.C.:5A 120VAC, 1×104 OPS
N.O.:5A 30VDC; N.C.:5A 30VDC, 1×104 OPS

NOTES:
1. All values without specified temperature are at 25°C.
2. The above lists the typical loads only. Other loads may be available upon request.

OUTLINE DIMENSIONS, WIRING DIAGRAM AND PC BOARD LAYOUT. Unit: inch(mm)

Outline Dimensions

BAS/BS Series

BAS/BS Series Outline Dimensions

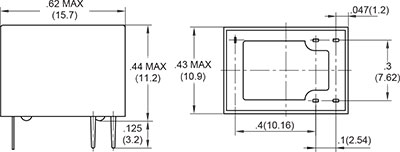

SC Series

SC Series Outline Dimensions

Wiring Diagram
(Bottom view)

BAS/BS Series

BAS/BS Series Wiring Diagram

SC Series

SC Series Wiring Diagram

PCB Layout
(Bottom view)

BAS/BS Series

BAS/BS Series PCB Layout

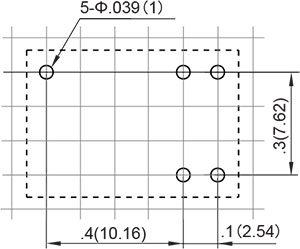

SC Series

SC Series PCB Layout

* The tolerance without indicating for PCB layout is always ±0.1mm.

Unless otherwise specified tolerances are:

≤1mm＞1mm and ≤5mm＞5mm
±0.2mm±0.3mm±0.4mm

CHARACTERISTIC CURVES

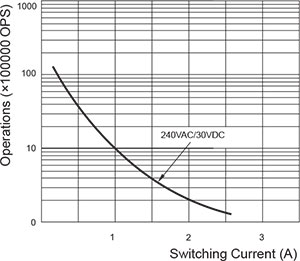

ENDURANCE CURVE

Endurance Curve

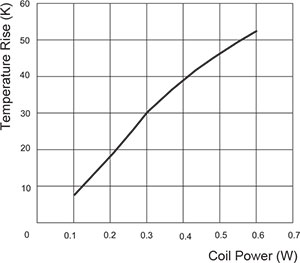

COIL TEMPERATURE RISE

Coil Temperature Rise

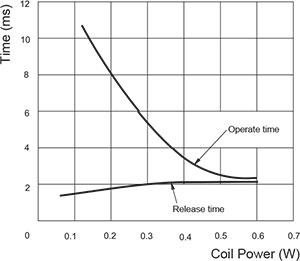

OPERATE TIME

Operate Time

PACKAGING SPECIFICATION

TUBEINNER CARTONOUTER CARTONOUTER CARTON SIZE
25PCS2000PCS4000PCSL475mm*W275mm*H290mm

APPLICATION GUIDELINES

Automatic Soldering
* Flow solder is the optimum method for soldering.
* Adjust the level of solder so that it does not overflow onto the top of the PC board.
* Unless otherwise specified, solder under the following conditions depending on the type of relay.

Preheat time
20°C-100°C		Rising slope
20°C-120°C		Decreasing slope
Peak-150°C		Welding temperature
255°C-265°C
90±5 seconds＜3°C/s＜4°C/s3~5s

Hand Soldering
* Keep the tip of the soldering iron clean.

Solder lron30W or 60W
lron Tip TemperatureApprox. 350°C 662°F
Solder TimeWithin approx. 3 seconds

* Immediate air cooling is recommended to prevent deterioration of the relay and surrounding parts due to soldering heat.
* Although the sealed type relay can be cleaned, avoid immersing the relay into cold liquid
(such as washing solvent) immediately after soldering. Doing so may deteriorate the sealing performance.

Discard the dropped product
