HAA02 Series

HAA02 Series

Features

  • Multi contact arrangements: 3NO+1NC, 2NO+2NC
  • Forcibly guided contacts according to EN50205
  • 6A switching capability
  • Low input power: 360mW
  • Reinforced insulation between input and output, and some reinforced insulation between different poles
  • UL insulation system: Class F
Recognized Component Mark

File No.:E75887

TÜV Product Certification

File No.:R 50507988

China Quality Certification

File No.:CQC21002307826

RoHS Compliant

Contact Ratings

Contact Arrangement3A1B，2A2B
Forcibly guided contacts Type
(according to EN50205)		Type A
Contact Resistance≤100mΩ (1A 6VDC)
Contact MaterialGold Flash+SiIver AIIoy
Contact Rating (Resistive)6A 277VAC/30VDC
Max. Switching Voltage400VAC/30VDC
Max. Switching Current6A
Max. Switching Power1662VA/180W
Mechanical Life1×107 OPS
Electrical Life1×105 OPS(1NO: 6A 30VDC, Resistive Load, 85°C, 1s on and 9s off)
1×105 OPS(1NO: 6A 277VAC, Resistive Load, 85°C, 1s on and 9s off)

Characteristics

Insulation Resistance1000MΩ (at 500VDC)
Dielectric
Strength		Between coil & contacts4000VAC 1min
Between open contacts1500VAC 1min
Between contacts sets2500VAC 1 min(7-8/9-10)
4000VAC 1 min(Other)
Surge voltageBetween coil & contacts10kV(1.2/50μs)
Between contacts sets5kV(1.2/50μs)
Operate time (at nomi. volt.)≤20ms
Release time (at nomi. volt.)≤20ms
Humidity5% to 85% RH
Operation temperature-40°C~+85°C
UL Class FInsulation System Class F
Shock
Resistance		Functional98m/s2
Destructive980m/s2
Vibration resistanceN.O./N.C.: 10Hz to 55Hz 1.5mm DA
N.O.: 55Hz to 200Hz, 98m/s2
N.C.: 55Hz to 200Hz, 49m/s2
Creepage
distance		Between coil & contacts8mm
Between contacts5.5mm
Clearance
distance		Between coil & contacts8mm
Between contacts5.5mm
Unit weightApprox. 22g
ConstructionFlux Tight Type, Sealed Type

Notes:
1) The data shown above are initial values.
2) Please find coil temperature curve in the characteristic curves.

Ordering Information

HAA02F3A1BDC24 –E –XXXX
ModelF:Class F3A1B:3NO+1NC, 2A2B:2NO+2NCCoil:DCCoil VoltageE:Flux Tight Type S:Sealed TypeCustomer Code

Notes:
1. PC board assembled with dust cover type and flux tight type relays can not be washed and/or coated.
2. Dust cover type and flux tight type relays can not be used in the environment with dust, or H2S, SO2, NO2 or similar gaseous environment etc.

Coil Data at 25°C

Nominal
Voltage
VDC		Operate
Voltage
(Max.)
VDC		Release
Voltage
(Min.)
VDC		*Max.
Allowable
Voltage
VDC		Coil
Resistance
Ω±10%
64.500.606.60100
96.750.909.90225
129.001.2013.20400
1813.501.8019.80900
2115.752.1023.101225
2418.002.4026.401600
3627.003.6039.603600
4836.004.8052.806400
11082.5011.00121.0028810

Note:”*Max Allowable Voltage”: The relay coil can endure max allowable voltage for a short period time only.

Coil

Coil Power360mW(110V: Approx. 420mW)

Safety Approval Ratings

UL&CULN.O./N.C.:6A 277VAC/250VAC/240VAC/125VAC, 85°C, 1×105 OPS
N.O./N.C.:6A 30VDC, 85°C, 1×105 OPS
N.O./N.C.:2A 240VAC(AC-15), 55°C, 1.5×104 OPS
N.O./N.C.:1A 24VDC(DC-13), 40°C, 5×104 OPS
TüVN.O./N.C.:6A 277VAC/250VAC/125VAC, 85°C, 1×105 OPS
N.O./N.C.:6A 30VDC, 85°C, 1×105 OPS
N.O./N.C.:2A/1.5A 240VAC(AC-15), 40°C, 1×104 OPS
N.O./N.C.:1A 24VDC(DC-13), 40°C, 5×104 OPS
CQCN.O./N.C.:6A 277VAC/250VAC/125VAC, 85°C, 1×105 OPS
N.O./N.C.:6A 30VDC, 85°C, 1×105 OPS

NOTES:
1. All values without specified temperature are at 25°C.
2. The above lists the typical loads only. Other loads may be available upon request.

OUTLINE DIMENSIONS, WIRING DIAGRAM AND PC BOARD LAYOUT. Unit: inch(mm)

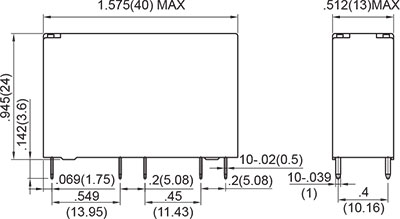

Outline Dimensions

Outline Dimensions

Wiring Diagram
(Bottom view)

3A1B

3A1B Wiring Diagram

2A2B

2A2B Wiring Diagram

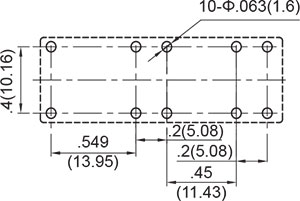

PCB Layout
(Bottom view)

PCB Layout

* The tolerance without indicating for PCB layout is always ±0.1mm.

Unless otherwise specified tolerances are:

≤1mm＞1mm and ≤5mm＞5mm
±0.2mm±0.3mm±0.4mm

CHARACTERISTIC CURVES

MAXIMUM SWITCHING POWER

Maximum Switching Power

ENDURANCE CURVE

Endurance Curve

Test conditions:
1NO, Resistive Load, 250VAC,
Room temp., 1s on 9s off

COIL TEMPERATURE RISE

Coil Temperature Rise

PACKAGING SPECIFICATION

BLISTER BOXOUTER CARTONOUTER CARTON SIZE
30PCS600PCSL400mm*W400mm*H190mm

APPLICATION GUIDELINES

Automatic Wave Soldering
* Wave solder is the optimum method for soldering.
* Adjust the level of solder so that it does not overflow onto the top of the PC board.
* Unless otherwise specified, solder under the following conditions depending on the type of relay.

Preheat time
20°C-100°C		Rising slope
20°C-120°C		Decreasing slope
Peak-150°C		Slodering temperature
255°C-265°C
90±5 seconds＜3°C/s＜4°C/s3~5s

Hand Soldering
* Keep the tip of the soldering iron clean.

Solder lron30W or 60W
lron Tip TemperatureApprox. 350°C 662°F
Solder TimeWithin approx. 3 seconds

* Immediate air cooling is recommended to prevent deterioration of the relay and surrounding parts due to soldering heat.
* Although the sealed type relay can be cleaned, avoid immersing the relay into cold liquid
(such as washing solvent) immediately after soldering. Doing so may deteriorate the sealing performance.

Discard the dropped product
