Features

  • Highly reliable, low cost
  • Miniature size & large switch capacity up to 10A
  • High dielectric strength type
  • Printed circuit terminals fits grid with 2.54mm
  • CUL recognized
  • Fully Sealed
Recognized Component Mark

File No.:E75887

TÜV Product Certification

File No.:R 50215414

RoHS Compliant

Contact Ratings

Contact Arrangement1C
Contact Resistance≤50mΩ (1A 24VDC)
Contact MaterialSilver Alloy
Contact Rating (Resistive)10A/120VAC, 6A/28VDC
Max. Switching Voltage300VAC/28VDC
Max. Switching Current10A
Max. Switching Power2500VA/280W
Mechanical Life1×107 operations
Electrical LifeSee more details at “safety approval ratings”

Characteristics

Insulation Resistance100MΩ (at 500VDC)
Dielectric
Strength		Between coil & contacts3000VAC 1min
Between open contacts750VAC 1min
Operate time (at nomi. volt.)≤7ms
Release time (at nomi. volt.)≤4ms
Humidity45% ~ 85% RH
Operation temperature-40°C~+85°C
UL Class BInsulation System Class B
Shock
Resistance		Functional98m/s2
Destructive980m/s2
Vibration resistance10Hz ~ 55Hz 1.5mm DA
Unit weightApprox. 10g
ConstructionSealed Type

Notes:
1) The data shown above are initial values.
2) Please find coil temperature curve in the characteristic curves.

Ordering Information

SSD106PHDC12XXXX
ModelContact Rating:
103=3A,106=6A,110=10A		PH:Gold Flash Contacts
Blank:Standard		Coil VoltageCustomer Code

Coil Data at 25°C

Nominal
Voltage
VDC		Operate
Voltage
(Max.)
VDC		Release
Voltage
(Min.)
VDC		*Max.
Allowable
Voltage
VDC		Coil
Resistance
Ω±10%
32.250.33.920
53.750.56.556
64.500.67.880
96.750.911.7180
129.001.215.6320
2418.02.431.21150
4836.04.862.44608

Note:
“*Max Allowable Voltage”: The relay coil can endure max allowable voltage for a short period time only.

Coil

Coil Power450mW (24V, 48V:500mW)

Safety Approval Ratings

UL&CUL103N.O./N.C.:3A 120VAC, G.P., 6×103OPS
106N.O./N.C.:6A 120VAC, G.P., 6×103OPS
N.O./N.C.:1/8HP 120VAC, 6×103OPS
N.O./N.C.:1/8HP 240VAC, 6×103OPS
110N.O./N.C.:10A 120VAC, G.P., 50°C, 6×103OPS
Pilot Duty C300.
N.O./N.C.:1/8HP 120VAC, 50°C, 6×103OPS
N.O./N.C.:1/8HP 240VAC, 50°C, 6×103OPS
N.O./N.C.:6A 300VAC, 6×103OPS
N.O./N.C.:6A 28VAC, 6×103OPS
TüV10A/250VAC, 10A/28VDC

NOTES:
1. All values without specified temperature are at 25°C.
2. The above lists the typical loads only. Other loads may be available upon request.

OUTLINE DIMENSIONS, WIRING DIAGRAM AND PC BOARD LAYOUT. Unit: inch(mm)

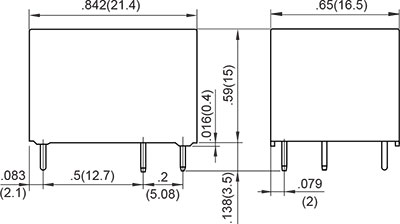

Outline Dimensions

Outline Dimensions

Wiring Diagram
(Bottom view)

Wiring Diagram

PCB Layout
(Bottom view)

PCB Layout

* The tolerance without indicating for PCB layout is always ±0.1mm.

CHARACTERISTIC CURVES

CONTACT SWITCHING CAPACITY

CONTACT SWITCHING CAPACITY

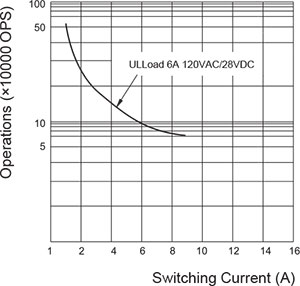

ENDURANCE CURVE

ENDURANCE CURVE

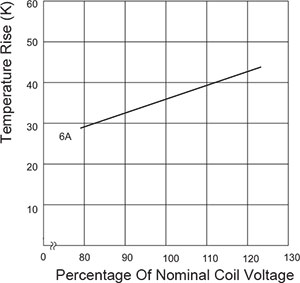

COIL TEMPERATURE RISE

COIL TEMPERATURE RISE

Unless otherwise specified tolerances are:

≤1mm＞1mm and ≤5mm＞5mm
±0.2mm±0.3mm±0.4mm

PACKAGING SPECIFICATION

TUBEINNER CARTONOUTER CARTONOUTER CARTON SIZE
25PCS1000PCS2000PCSL480mm*W245mm*H335mm

APPLICATION GUIDELINES

Automatic Soldering
* Flow solder is the optimum method for soldering.
* Adjust the level of solder so that it does not overflow onto the top of the PC board.
* Unless otherwise specified, solder under the following conditions depending on the type of relay.

Preheat time
20°C-100°C		Rising slope
20°C-120°C		Decreasing slope
Peak-150°C		Welding temperature
255°C-265°C
90±5 seconds＜3°C/s＜4°C/s3~5s

Hand Soldering
* Keep the tip of the soldering iron clean.

Solder lron30W or 60W
lron Tip TemperatureApprox. 350°C 662°F
Solder TimeWithin approx. 3 seconds

* Immediate air cooling is recommended to prevent deterioration of the relay and surrounding parts due to soldering heat.
* Although the sealed type relay can be cleaned, avoid immersing the relay into cold liquid
(such as washing solvent) immediately after soldering. Doing so may deteriorate the sealing performance.

Discard the dropped product
