PLT Series

PLT Series

Features

  • 20A or 25A switching capability
  • Surge voltage up to 6kV (between coil and contacts)
  • Explosion-proof products available
Recognized Component Mark

File No.:E75887

TÜV Product Certification

File No.:R 50267950

RoHS Compliant

Contact Ratings

Contact Arrangement1A, 1B, 1C
Contact Resistance≤100mΩ(1A 24VDC)
Contact MaterialAgSnO, AgSnOIn
Contact Rating (Resistive)N.O.:20A/277VAC
N.C.:16A/125VAC		N.O.:25A/125VAC
17A/277VAC
N.C.:20A/125VAC
Max. Switching Voltage400VAC400VAC(NO)
Max. Switching Current20A25A
Max. Switching Power5540VA4709VA
Mechanical Life1×107 operations
Electrical LifeSee more details at “safety approval ratings”

Characteristics

Insulation Resistance100MΩ (at 500VDC)
Dielectric
Strength		Between coil & contacts2500VAC(PLT)/3500VAC(PLT-E) 1min
Between open contacts1000VAC 1min
Surge voltage(between coil & contacts)6kV(1.2×50μs)
Creepage(between coil & contacts)≥4.8mm(PLT), ≥7.3mm(PLT-E)
Clearance(between coil & contacts)≥4.8mm(PLT), ≥7.3mm(PLT-E)
Operate time (at nomi. volt.)≤10ms
Release time (at nomi. volt.)≤5ms
Humidity5%~85% RH
Operation temperature-40°C~+105°C
UL Class B/FInsulation System Class B/F
Shock
Resistance		Functional98m/s2
Destructive980m/s2
Vibration resistance10Hz to 55Hz 1.5mm DA
Unit weightApprox. 14g
ConstructionSealed Type, Dust Cover Type, Flux Tight Type

Notes:
1) The data shown above are initial values.
2) Please find coil temperature curve in the characteristic curves.

Ordering Information

PLTF1C20DC24KE –1 –XXXX
ModelF:Class F
Blank:Class B		Contact Arrangement:
1A=1 Form A;1B=1 Form B
1C=1 Form C		Contact Rating:
20=20A(Standard Pin)
25=25A(Wide Pin)		Coil VoltageContact Gap: K=1mm(Form A only)
R=2mm(Form A only) Blank:0.4-0.45mm		E:E Type Lead Pins Blank:Standard Pins1:Dust Cover Type 2:Flux Tight Type Blank:Sealed TypeCustomer Code

Notes:
1. PC board assembled with dust cover type and flux tight type relays can not be washed and/or coated.
2. Dust cover type and flux tight type relays can not be used in the environment with dust, or H2S, SO2, NO2 or similar gaseous environment etc.

Coil Data at 25°C

Nominal
Voltage
VDC		Operate
Voltage
(Max.)
VDC		Release
Voltage
(Min.)
VDC		*Max.
Allowable
Voltage
VDC		Coil
Resistance
Ω±10%
20A25A
32.250.33.92520
53.750.56.57055
64.500.67.810080
96.750.911.7225180
129.001.215.6400320
1813.501.823.4900720
2418.002.431.216001280
4836.004.862.464005120

Note:
“*Max Allowable Voltage”: The relay coil can endure max allowable voltage for a short period time only.

Coil

Coil Power20A:360mW
25A:450mW

Safety Approval Ratings

UL&CULNon-Cd
Contact
(20A)		N.O.:20A 277VAC, G.P., 6×103 OPS(40°C)
N.O.:10A 120VAC, 3×104 OPS(40°C)
N.O.:5A 240VAC, 1×105 OPS(40°C)
N.O.:3A, 10A Inrush, 24VAC Pilot duty, 3×104 OPS(40°C)
N.O.:1A, 10A Inrush, 240VAC Pilot duty, 1×105 OPS(40°C)
N.O.:1.7A, 17A Inrush, 40VAC Pilot duty, 1×105 OPS(40°C)
N.O.:3.8FLA, 22.8 LRA, 120VAC HP, 1×105 OPS(40°C)
N.O.:3.6FLA, 21.6 LRA, 240VAC HP, 3×104 OPS(40°C)
N.O.:1.9FLA, 11.4 LRA, 240VAC HP, 1×105 OPS(40°C)
N.O.:8A 120VAC TV，25×103 OPS(40°C)
N.O./N.C.:1/2HP 120VAC, 6×103 OPS(40°C)
N.O./N.C.:1/2HP 240VAC, 6×103 OPS(40°C)
N.C.:16A 125VAC, G.P., 6×103 OPS(40°C)
N.C.:10A 120VAC, 3×104 OPS(40°C)
N.C.:1.7A, 17A Inrush, 240VAC Pilot duty, 3×104 OPS(40°C)
N.C.:3.6FLA, 21.6 LRA, 240VAC HP, 3×104 OPS(40°C)
N.C.: 1000W 120VAC Tungsten, 1×104 OPS(40°C)
N.C.:3A 277VAC Electronic Ballast, 6×103 OPS(40°C)
N.C.:5A 277VAC Electronic Ballast, 6×103 OPS(40°C)
Non-Cd
Contact
(25A)		N.O.:25A 125VAC, G.P., 6×103 OPS(40°C)
N.O.:17A 277VAC, G.P., 6×103 OPS(40°C)
N.O.: 1500W 277VAC Ballast, 6×103 OPS(40°C)
N.O.:1700W 120VAC Tungsten, 6×103 OPS(40°C)
N.C.:20A 125VAC, G.P., 6×103 OPS(40°C)
N.C.: 1500W 277VAC Ballast, 6×103 OPS(40°C)
N.C.:1700W 120VAC Tungsten, 6×103 OPS(40°C)
TüVNon-Cd
Contact
(20A)		N.O.:16A 250VAC, 1×104 OPS
N.C.:10A 250VAC, 1×104 OPS
N.O.:16A 250VAC; N.C.:10A 250VAC, 1×104 OPS

NOTES:
1. All values without specified temperature are at 25°C.
2. The above lists the typical loads only. Other loads may be available upon request.

OUTLINE DIMENSIONS, WIRING DIAGRAM AND PC BOARD LAYOUT. Unit: inch(mm)

Outline Dimensions

20A

Standard Pins

20A Standard Pins Outline Dimensions

Wiring Diagram
(Bottom view)

1 Form A

20A Standard Pins 1 Form A Wiring Diagram

1 Form B

20A Standard Pins 1 Form B Wiring Diagram

1 Form C

20A Standard Pins 1 Form C Wiring Diagram

PCB Layout
(Bottom view)

1 Form A

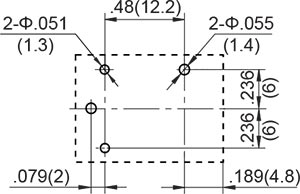

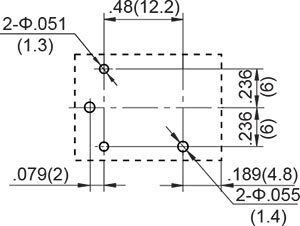

20A Standard Pins 1 Form A PCB Layout

1 Form B

20A Standard Pins 1 Form B PCB Layout

1 Form C

20A Standard Pins 1 Form C PCB Layout

Outline Dimensions

25A

Standard Pins

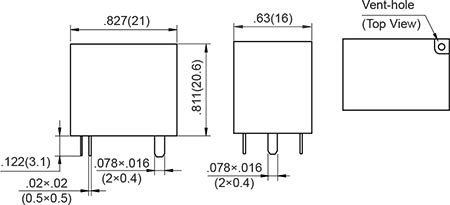

25A Standard Pins Outline Dimensions

Wiring Diagram
(Bottom view)

1 Form A

25A Standard Pins 1 Form A Wiring Diagram

1 Form B

25A Standard Pins 1 Form B Wiring Diagram

1 Form C

25A Standard Pins 1 Form C Wiring Diagram

PCB Layout
(Bottom view)

1 Form A

25A Standard Pins 1 Form A PCB Layout

1 Form B

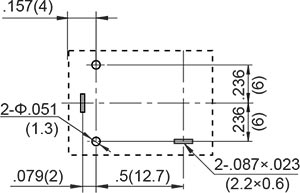

25A Standard Pins 1 Form B PCB Layout

1 Form C

25A Standard Pins 1 Form C PCB Layout

Outline Dimensions

20A

E Type Lead Pins

20A E Type Lead Pins Outline Dimensions

Wiring Diagram
(Bottom view)

1 Form A

20A E Type Lead Pins 1 Form A Wiring Diagram

1 Form B

20A E Type Lead Pins 1 Form B Wiring Diagram

1 Form C

20A E Type Lead Pins 1 Form C Wiring Diagram

PCB Layout
(Bottom view)

1 Form A

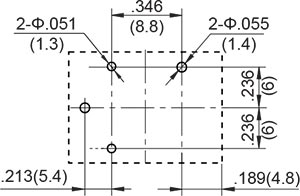

20A E Type Lead Pins 1 Form A PCB Layout

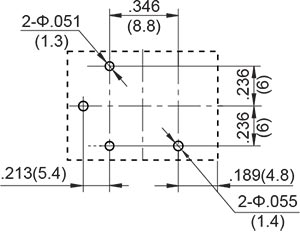

1 Form B

20A E Type Lead Pins 1 Form B PCB Layout

1 Form C

20A E Type Lead Pins 1 Form C PCB Layout

Outline Dimensions

25A

E Type Lead Pins

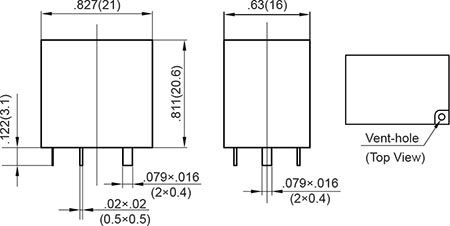

25A E Type Lead Pins Outline Dimensions

Wiring Diagram
(Bottom view)

1 Form A

25A E Type Lead Pins 1 Form A Wiring Diagram

1 Form B

25A E Type Lead Pins 1 Form B Wiring Diagram

1 Form C

25A E Type Lead Pins 1 Form C Wiring Diagram

PCB Layout
(Bottom view)

1 Form A

25A E Type Lead Pins 1 Form A PCB Layout

1 Form B

25A E Type Lead Pins 1 Form B PCB Layout

1 Form C

25A E Type Lead Pins 1 Form C PCB Layout

* The tolerance without indicating for PCB layout is always ±0.1mm.

Unless otherwise specified tolerances are:

≤1mm＞1mm and ≤5mm＞5mm
±0.2mm±0.3mm±0.4mm

CHARACTERISTIC CURVES

20A

Max. Switching Power

20A Max. Switching Curve

Endurance Curve (N.O.)

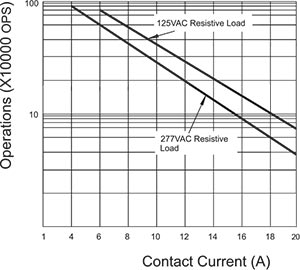

20A Endurance Curve (N.O.)

Coil Temperature Rise

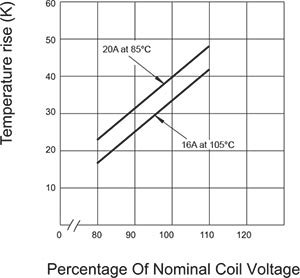

20A Coil Temperature Rise

25A

Max. Switching Power

25A Max. Switching Curve

Endurance Curve (N.O.)

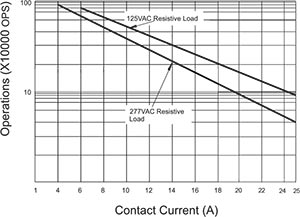

25A Endurance Curve (N.O.)

Coil Temperature Rise

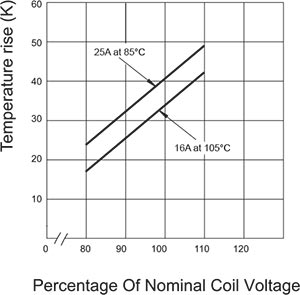

25A Coil Temperature Rise

PACKAGING SPECIFICATION

BLISTER BOXOUTER CARTONOUTER CARTON SIZE
30PCS1000PCSL540mm*W200mm*H165mm

APPLICATION GUIDELINES

Automatic Soldering
* Flow solder is the optimum method for soldering.
* Adjust the level of solder so that it does not overflow onto the top of the PC board.
* Unless otherwise specified, solder under the following conditions depending on the type of relay.

Preheat time
20°C-100°C		Rising slope
20°C-120°C		Decreasing slope
Peak-150°C		Welding temperature
255°C-265°C
90±5 seconds＜3°C/s＜4°C/s3~5s

Hand Soldering
* Keep the tip of the soldering iron clean.

Solder lron30W or 60W
lron Tip TemperatureApprox. 350°C 662°F
Solder TimeWithin approx. 3 seconds

* Immediate air cooling is recommended to prevent deterioration of the relay and surrounding parts due to soldering heat.
* Although the sealed type relay can be cleaned, avoid immersing the relay into cold liquid
(such as washing solvent) immediately after soldering. Doing so may deteriorate the sealing performance.

Discard the dropped product
