KLT Series

KLT Series
KLT Series

Features

  • Highly reliable, low cost
  • Miniature size & large switch capacity up to 20A
  • High dielectric strength type
  • Fully Sealed
Recognized Component Mark

File No.:E75887

TÜV Product Certification

File No.:R 50306227

RoHS Compliant

Contact Ratings

Contact Arrangement1A, 1B, 1C
Contact Resistance≤100mΩ (1A 24VDC)
Contact MaterialAgSnO
Contact Rating (Resistive)3A 277VAC/28VDC; 6A 277VAC/28VDC;
10A 277VAC/28VDC; 12A 277VAC/28VDC;
15A 277VAC/28VDC; 20A 277VAC/28VDC
Max. Switching Voltage277VAC/28VDC
Max. Switching Current20A
Max. Switching Power5540VA/560W
Mechanical Life1×106 operations
Electrical LifeSee more details at “safety approval ratings”

Characteristics

Insulation Resistance100MΩ (at 500VDC)
Dielectric
Strength		Between coil & contacts1500VAC 1min
Between open contacts750VAC 1min
Operate time (at nomi. volt.)≤8ms
Release time (at nomi. volt.)≤5ms
Humidity45% ~ 85% RH
Operation temperature-55°C~+105°C
UL Class FInsulation System Class F
Shock
Resistance		Functional98m/s2
Destructive980m/s2
Vibration resistance10Hz to 55Hz 1.5mm DA
Unit weightApprox. 12g
ConstructionSealed Type, Dust Cover Type, Flux Tight Type

Notes:
1) The data shown above are initial values.
2) Please find coil temperature curve in the characteristic curves.

Ordering Information

KLTF1C12DC12 –1 –GF –XXXX
ModelF:Class FContact Arrangement:
1A=1 Form A
1B=1 Form B
1C=1 Form C		Contact Rating:
3=3A, 6=6A, 10=10A,
12=12A, 15=15A, 20=20A		Coil Voltage1:Dust Cover Type 2:Flux Tight Type
Blank:Sealed Type		GF:Gold FlashCustomer Code

Notes:
1. PC board assembled with dust cover type and flux tight type relays can not be washed and/or coated.
2. Dust cover type and flux tight type relays can not be used in the environment with dust, or H2S, SO2, NO2 or similar gaseous environment etc.

Coil Data at 25°C

3A,6A,10A,12A,15A

Nominal
Voltage
VDC		Operate
Voltage
(Max.)
VDC		Release
Voltage
(Min.)
VDC		*Max.
Allowable
Voltage
VDC		Coil
Resistance
Ω±10%
32.250.33.925
53.750.56.570
64.500.67.8100
96.750.911.7220
129.001.215.6400
1813.51.823.4900
2418.02.431.21600
4836.04.862.46400

20A

Nominal
Voltage
VDC		Operate
Voltage
(Max.)
VDC		Release
Voltage
(Min.)
VDC		*Max.
Allowable
Voltage
VDC		Coil
Resistance
Ω±10%
32.250.33.920
53.750.56.555
64.500.67.880
96.750.911.7180
129.001.215.6320
1813.51.823.4720
2418.02.431.21280
4836.04.862.45120

Note:
“*Max Allowable Voltage”: The relay coil can endure max allowable voltage for a short period time only.

Coil

Coil Power3A-15A: 360mW
20A: 450mW

Safety Approval Ratings

UL&CUL3A3A 277VAC, G.P., 40°C, 6×103 OPS
3A 28VDC, G.P., 40°C, 6×103 OPS
3.6A 277VAC, Ballast, 40°C, 6×103 OPS
6A6A 277VAC, G.P., 40°C, 6×103 OPS
6A 28VDC, G.P., 40°C, 6×103 OPS
3.6A 277VAC, Ballast, 40°C, 6×103 OPS
10A10A 277VAC, G.P., 40°C, 6×103 OPS
10A 28VDC, G.P., 40°C, 6×103 OPS
12A12A 277VAC, G.P., 40°C, 6×103 OPS
12A 28VDC, G.P., 40°C, 6×103 OPS
N.O./N.C.:10A/5A 28VDC, G.P., 40°C, 6×103 OPS
3.6A 277VAC, Ballast, 40°C, 6×103 OPS
15A15A 277VAC, G.P., 40°C, 6×103 OPS
N.O.:15A 28VDC, G.P., 40°C, 6×103 OPS
N.C.:12A 28VDC, G.P., 40°C, 6×103 OPS
N.O./N.C.:10A/5A 28VDC, G.P., 40°C, 6×103 OPS
3.6A 277VAC, Ballast, 40°C, 6×103 OPS
20A20A 277VAC, G.P., 40°C, 6×103 OPS
N.O.:20A 28VDC, G.P., 40°C, 6×103 OPS
N.C.:12A 28VDC, G.P., 40°C, 6×103 OPS
N.O./N.C.:10A/5A 28VDC, G.P., 40°C, 6×103 OPS
3.6A 277VAC, Ballast, 40°C, 6×103 OPS
TüV(KLT20)N.O.:20A 277VAC, 25°C, 3×104 OPS
N.O.:20A 125VAC, 25°C, 5×104 OPS
(KLT20)N.O.:15A 125VAC, 85°C, 2×104 OPS
N.O.:12A 250VAC, 105°C, 2×104 OPS
(KLT20)N.O.:20A 28VDC, 85°C, 2×104 OPS
N.C.:12A 277VAC, 25°C, 1×104 OPS
(KLT20)N.C.:12A 28VDC, 85°C, 2×104 OPS
N.O./N.C.:12A/10A 250VAC, 85°C, 1×104 OPS
N.O./N.C.:12A/10A 28VDC, 85°C, 1×104 OPS

NOTES:
1. All values without specified temperature are at 25°C.
2. The above lists the typical loads only. Other loads may be available upon request.

OUTLINE DIMENSIONS, WIRING DIAGRAM AND PC BOARD LAYOUT. Unit: inch(mm)

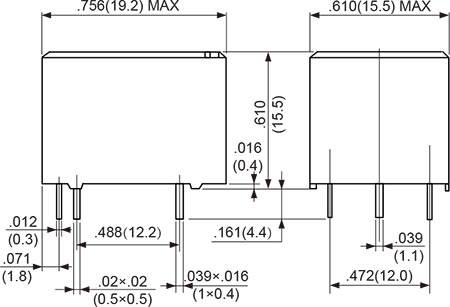

Outline Dimensions

Outline Dimensions

Wiring Diagram
(Bottom view)

1A

1A Wiring Diagram

1B

1B Wiring Diagram

1C

1C Wiring Diagram

PCB Layout
(Bottom view)

1A

1A PCB Layout

1B

1B PCB Layout

1C

1C PCB Layout* The tolerance without indicating for PCB layout is always ±0.1mm.

Unless otherwise specified tolerances are:

≤1mm＞1mm and ≤5mm＞5mm
±0.2mm±0.3mm±0.4mm

Characteristic Curves

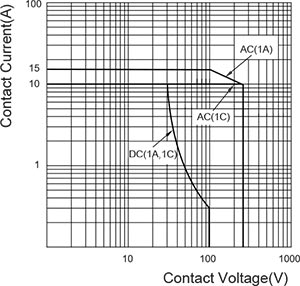

MAXIMUM SWITCHING POWER

MAXIMUM SWITCHING POWER

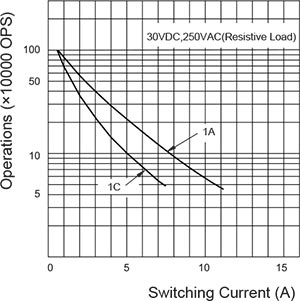

ENDURANCE CURVE

ENDURANCE CURVE

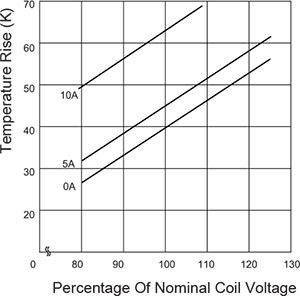

COIL TEMPERATURE RISE

COIL TEMPERATURE RISE

PACKAGING SPECIFICATION

TUBEINNER CARTONOUTER CARTONOUTER CARTON SIZE
20PCS1000PCS2000PCSL480mm*W245mm*H335mm

APPLICATION GUIDELINES

Automatic Soldering
* Flow solder is the optimum method for soldering.
* Adjust the level of solder so that it does not overflow onto the top of the PC board.
* Unless otherwise specified, solder under the following conditions depending on the type of relay.

Preheat time
20°C-100°C		Rising slope
20°C-120°C		Decreasing slope
Peak-150°C		Welding temperature
255°C-265°C
90±5 seconds＜3°C/s＜4°C/s3~5s

Hand Soldering
* Keep the tip of the soldering iron clean.

Solder lron30W or 60W
lron Tip TemperatureApprox. 350°C 662°F
Solder TimeWithin approx. 3 seconds

* Immediate air cooling is recommended to prevent deterioration of the relay and surrounding parts due to soldering heat.
* Although the sealed type relay can be cleaned, avoid immersing the relay into cold liquid
(such as washing solvent) immediately after soldering. Doing so may deteriorate the sealing performance.

Discard the dropped product

PDF Document
