HAG01M Series

HAG01M Series

Features

  • With arc extinguishing magnets
  • High performance DC relay for photovoltaic power generation systems, energy storage system and xEV charging device, etc
Recognized Component Mark

File No.:E75887

TÜV Product Certification

File No.:R 50471143

RoHS Compliant

Contact Ratings

Contact Arrangement1A
Contact ResistanceMax.10mΩ (by voltage drop 6VDC 20A)
Contact MaterialSiIver AIIoy(Non-Cd)
Contact Rating
(Resistive)		15A 500VDC,
On 1s/Off 19s, 30,000 ops.
Max. Switching Voltage500VDC
Max. Switching Current15A
Mechanical Life1×106 operations
Electrical Life15A 500VDC, ON 1s/OFF 19s 30,000 ops
20A 300VDC, ON 1s/OFF 19s 30,000 ops

Characteristics

Insulation Resistance1000MΩ (at 500VDC)
Dielectric
Strength		Between coil & contacts5000VAC 1min
Between open contacts2000VAC 1min
Surge Voltage10kV(1.2/50μS)
Operate time (at nomi. volt.)≤30ms
Release time (at nomi. volt.)≤10ms
Humidity5%~85% RH
Operation temperature-40°C~+85°C
Shock
Resistance		Functional98m/s2
Destructive980m/s2
Vibration resistance10Hz ~ 55Hz 1.5mm DA
Unit weightApprox. 130g
ConstructionSealed Type, Dust Cover Type, Flux Tight Type

Ordering Information

HAG01MFASDC12
ModelF:Class F
H:Class H		A:SPDM
single-pole, double-make		C:Dust Cover Type
S:Sealed Type
E:Flux Tight Type		Coil:DCCoil Voltage

Notes:
1. PC board assembled with dust cover type and flux tight type relays can not be washed and/or coated.
2. Dust cover type and flux tight type relays can not be used in the environment with dust, or H2S, SO2, NO2 or similar gaseous environment etc.

Coil Data at 25°C

Nominal
Voltage
VDC		Operate
Voltage
(Max.)
VDC		Release
Voltage
(Min.)
VDC		*Max.
Allowable
Voltage
VDC		Coil
Resistance
Ω±10%
64.500.306.6014.4
96.750.459.9032.4
129.000.6013.2057.6
2418.001.2026.40230.4

Note:”*Max Allowable Voltage”: The relay coil can endure max allowable voltage for a short period time only.

Coil

Coil PowerApprox. 2.5W

Safety Approval Ratings

UL&CUL20A 300VDC, ON 0.5s/OFF 9s, 25°C, 3×104 OPS
20A 300VDC, ON 0.5s/OFF 9s, 85°C, 1×104 OPS
TüV10A 500VDC, ON 1s/OFF 9s, 25°C, 3×104 OPS
15A 500VDC, ON 1s/OFF 19s, 25°C, 3×104 OPS
20A 300VDC, ON 1s/OFF 19s, 25°C, 3×104 OPS
10A 500VDC, ON 1s/OFF 9s, 85°C, 1×104 OPS
15A 500VDC, ON 1s/OFF 19s, 85°C, 1×104 OPS
20A 300VDC, ON 1s/OFF 19s, 85°C, 1×104 OPS

NOTES:
1. All values without specified temperature are at 25°C.
2. The above lists the typical loads only. Other loads may be available upon request.

OUTLINE DIMENSIONS, WIRING DIAGRAM AND PC BOARD LAYOUT. Unit: inch(mm)

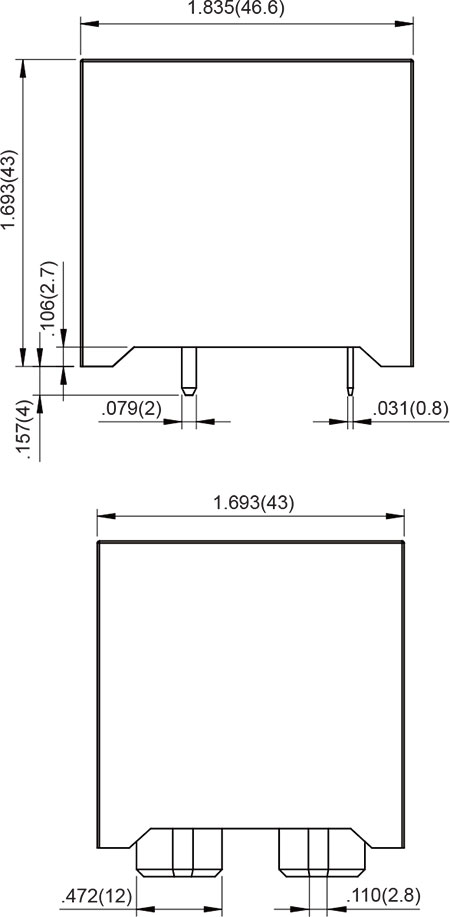

Outline Dimensions

Outline Dimensions

Wiring Diagram
(Bottom view)

Wiring Diagram

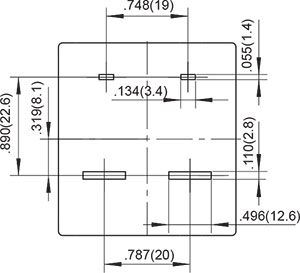

PCB Layout
(Bottom view)

PCB Layout

Remark:
1) In case of no tolerance shown in outline dimension: outline dimension ≤1mm,tolerance should be ±0.2mm; outline dimension ＞1mm and ≤5mm,tolerance should be ±0.3mm;outline dimension ＞5mm, tolerance should be ±0.4mm.
2) The tolerance without indicating for PCB layout is always ±0.1mm.

PACKAGING SPECIFICATION

BLISTER BOXOUTER CARTONOUTER CARTON SIZE
9PCS54PCSL455mm*W220mm*H185mm

APPLICATION GUIDELINES

Automatic Soldering
* Flow solder is the optimum method for soldering.
* Adjust the level of solder so that it does not overflow onto the top of the PC board.
* Unless otherwise specified, solder under the following conditions depending on the type of relay.

Preheat time
20°C-100°C		Rising slope
20°C-120°C		Decreasing slope
Peak-150°C		Welding temperature
255°C-265°C
90±5 seconds＜3°C/s＜4°C/s3~5s

Hand Soldering
* Keep the tip of the soldering iron clean.

Solder lron30W or 60W
lron Tip TemperatureApprox. 350°C 662°F
Solder TimeWithin approx. 3 seconds

* Immediate air cooling is recommended to prevent deterioration of the relay and surrounding parts due to soldering heat.
* Although the sealed type relay can be cleaned, avoid immersing the relay into cold liquid
(such as washing solvent) immediately after soldering. Doing so may deteriorate the sealing performance.

Discard the dropped product
